2012 Honda Pilot Engine Assembly

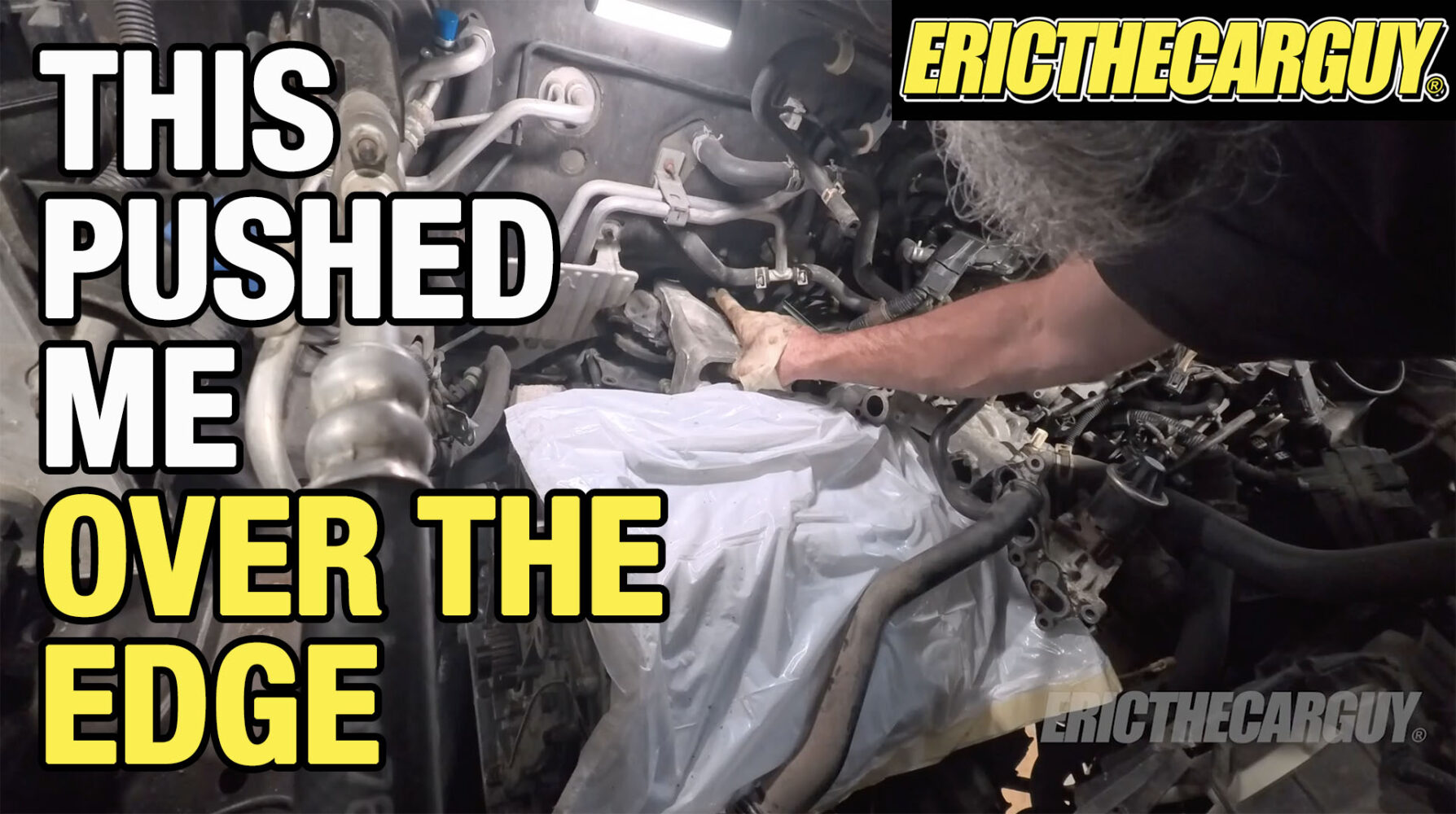

This video covers the reassembly and start up of a Honda J Series Engine in a 2012 Honda Pilot with VCM. This is part of my VCM series where I’m looking to offer solutions to the issues with the Honda VCM systems.
Thank you for watching!
Honda Service Bulletins
Honda SB 13-081: (includes part numbers)
Honda SB 20-023 (oil leak):
Check out my other YouTube channel ETCG1:
VCM Tuner II (affiliate link):
Tools (some are affiliate links)
12mm14mm Snap-on zero offset wrench:
Honda Valve Spring Tool (I think):
Parts
Spark Plugs: 12290-R71-L01
Green Connecting Rod Bearing: 13213-P8F-A11
Timing Belt: 14400-RCA-A01
Water Pump: 19200-RDV-J01
Transfer Tube ‘O’ Rings: 80871-SN7-003
Thermostat: 19301-P8F-A01
Rear Valve Cover Set: 12050-R70-A00
Front Valve Cover Set: 12030-R70-A00
PCV Valve: 17130-RCA-A02
Rear Cylinder Head Gasket: 12261-R70-A01
Front Cylinder Head Gasket: 12251-R70-A01
Ring Set: 13011-R70-A12
VCM Spool Valve Front: 15810-R70-A04
Front Crank Seal: 91212-5MR-A01
Upper Oil Pump Seal: 15115-P8A-A01
Oil Pickup Tube ‘O’ ring: 15221-RYE-A01
Oil Filter Housing ‘O’ ring: 15302-RDV-J00
